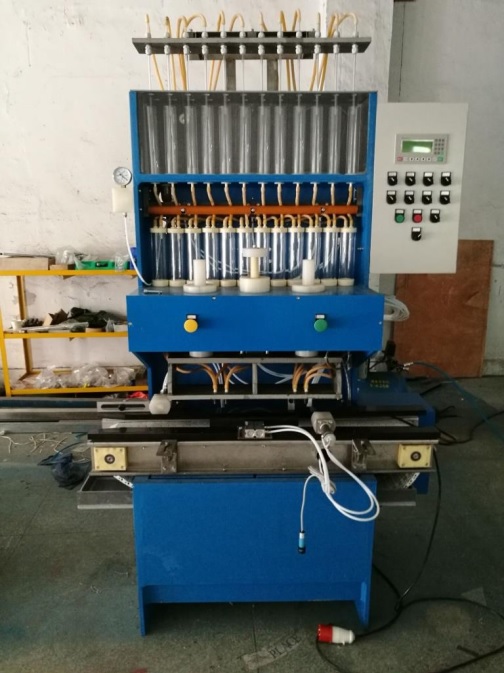

Vacuum and acid filling machine

Application: It is used for small size 7,9,18,20Ah battery vacuum and acid filling.
Capacity: 120~180 batteries/hour.
Features: The machine adopts PLC to safely and reliably control the whole operation process; each filling time can be flexibly set.
Accuracy: ±1F.S%
Power supply: AC 380, 50HZ , 1.5KW
Air supply: 0.6MPa 0.05m3/min
Dimensions: 1300mm×760mm×2000mm
