1- system performance

HGJ-1000 automatic paste system is suitable for batteries production and paste section. The system integrates the functions of lead powder conveying, lead powder automatic weighing and feeding, water and acid automatic weighing and adding, automatic mixing, automatic water replenishing, etc. It has auxiliary functions such as host load display, motor stop-up alarm, paste over-temperature alarm, acid mist automatic discharging, etc. The whole system is composed of PLC and man-machine dialogue interface produced by TOUCHWIN COMPANY, Canada. The whole production process is centralized and a utomated. Automatic completion of lead powder feeding, weighing, acid, water weighing, adding powder and water adding acid, fast and paste, lead paste storage and other functions. The system is designed with distributed structure, which is highly integrated, safe, reliable and durable. It has the function of self-diagnosis, which can find out the fault location conveniently and quickly, and restore the system function in time.

2-System Composition and Technical Parameters

TAHG-1000 paste system are composed of the following equipment, the main technical parameters of each equipment are as follows:

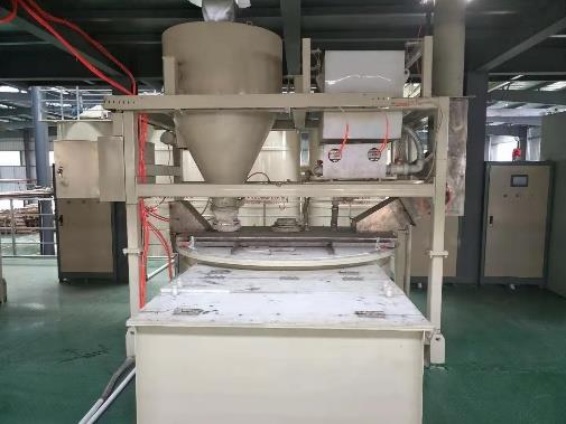

1. Quick Paste Machine
a-Maximum weight of lead powder for one time paste 1000KG.
b-Maximum lead paste production per hour 1200KG.
c-Rated power of motor 45KW.
d-Compressed air consumption 0.6MPa 0.015m3.
e-Air volume of exhaust fan 3000m3/h.
f-Cooling water quantity 2T/h.




TAHG-1000 paste system are composed of the following equipment, the main technical parameters of each equipment are as follows:

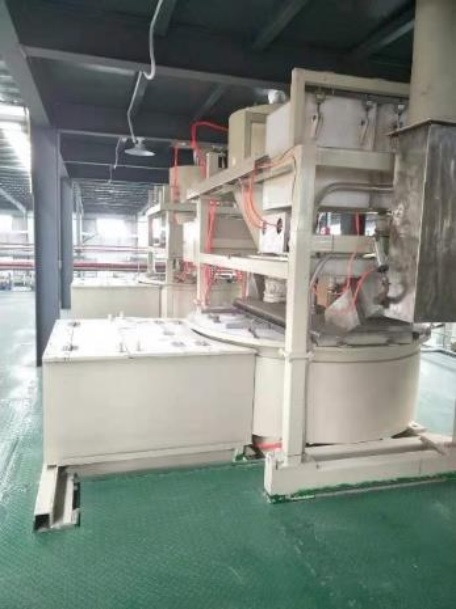

2. Lead paste storage bucket:

a- Effective volume 350L .
b- Storage of paste 1.5T.
c- Rotational speed of paste hopper 8 speed/min.
d- Rated power of traction motor 4KW.

3.Lead powder weighing bucket:

a- Maximum weight at a time 1000KG

b- Quantify precision ≤0.5%

c- Repeated Measurement Accuracy ±0.5KG

d- Vibrator power 250W





4. Lead powder storage bucket

a- Lead powder reserves 1000KG

b- Feeding capacity ≥25KG/min

(Note: Depending on the system, the register bucket may not match.)

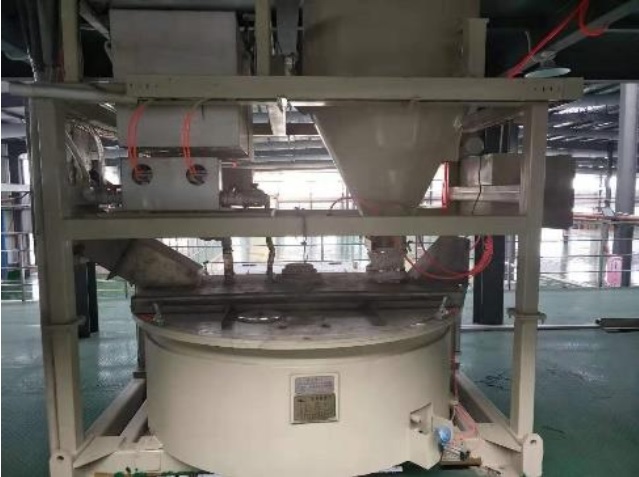

5. Acid and water weighing box

a- Effective volume 180L
b- Measurement Scope 10-160L
C- Repeated Measurement Accuracy ±0.5%

6. Electrical control cabinet

a- TOUCH WIN Industrial touch screen True color LCD, service life over 50000h Resolution 480*600
b- THINGET XC3-48 PLC Main module, XC3-8AD Analog module The system sensor uses 4-20 mA teletrans mission analog signal
C- 0.2 level weighing sensor and temperature, current transducer. The system accuracy is guaranteed.
