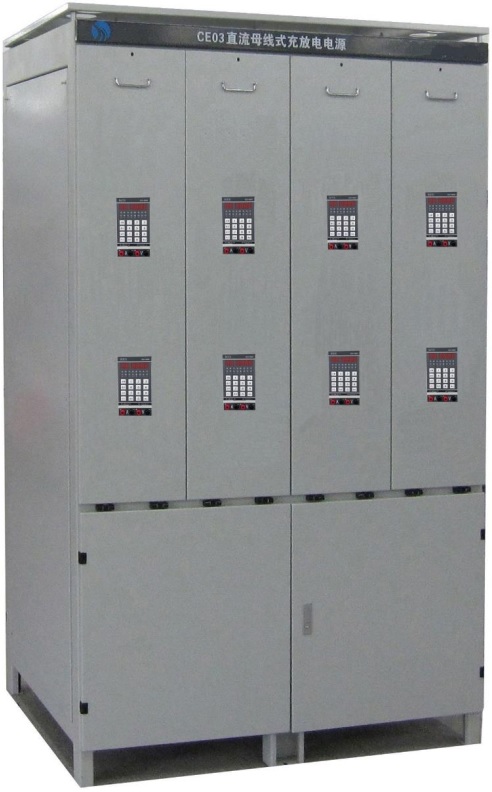

Charger and Discharger

Model: CE03-008GR-T 40A/80A/350V

Battery formation and battery pack charging/discharging and Supplementary electricity, Give full consideration to many formation modes and parameters of different types of battery.

This product adopts the international advanced technologyUsing technology of IGBT rectifier + DC/BUS/BAR, to realize the energy optimization of the charge and discharge; Redundant discharge energy is consumed through top resistance.In terms of control function, this machine has manual one-step control and also fully Automatic Operation Function of Process Procedure。 During automatic operation, through computer to send pre-set charging/discharging program to each circuit, or directly set the charging/discharging program in the screen。
Each circuit can have automatic control according to process program。 The whole operation process can be completed automatically。 In Manual operation, through screen keyboard to enter control voltage、 current、 time, Controller can realize single-step operation.
The charger/discharger by multiple microcomputer control of independent power charge anddischarge circuit of IGBT, Each circuit to work independently, there is no influence between each other, More charge/discharge share after the rectifier DCs/bar power,When the storage battery charging from the DC-bus-bar access to electricity, discharge power back to the DCbus-bar, Electrical energy utilization can reach 95%, Power factor: ≥0.90, the whole machine performance is stable and reliable.

Can be controlled by a computer management at most 480 circuit, Realize unmanned and remote monitoring; The charger/discharger machine in the process of running every loop operation parameters real/time display, real/time alarm;Charging with constant current, constant voltage charge, constant exile function such as electricity, let stand, circulation, over/current, over/voltage, cut/off overvoltage, undervoltage, IGBT failure, dc, overload alarm indicator, etc;Each loop work record history logs, power/fail data is automatically saved, electrical automatic recovery power of the state on and continue running,Running history logs can check on computer at any time.

Technical Parameters:
Power supply: three-phase 380V-5%+10% +zero line+ground wire ; 50Hz
Current control range: 1%-100% rated current
Current Control Accuracy: ≤±0.5% rated current
Voltage control range: 10%-100% rated voltage
Voltage Control Accuracy: ≤±0.5% rated voltage
Time Control Accuracy: ≤±10S/24H
Redundant Power Processing: Resistance Consumption
